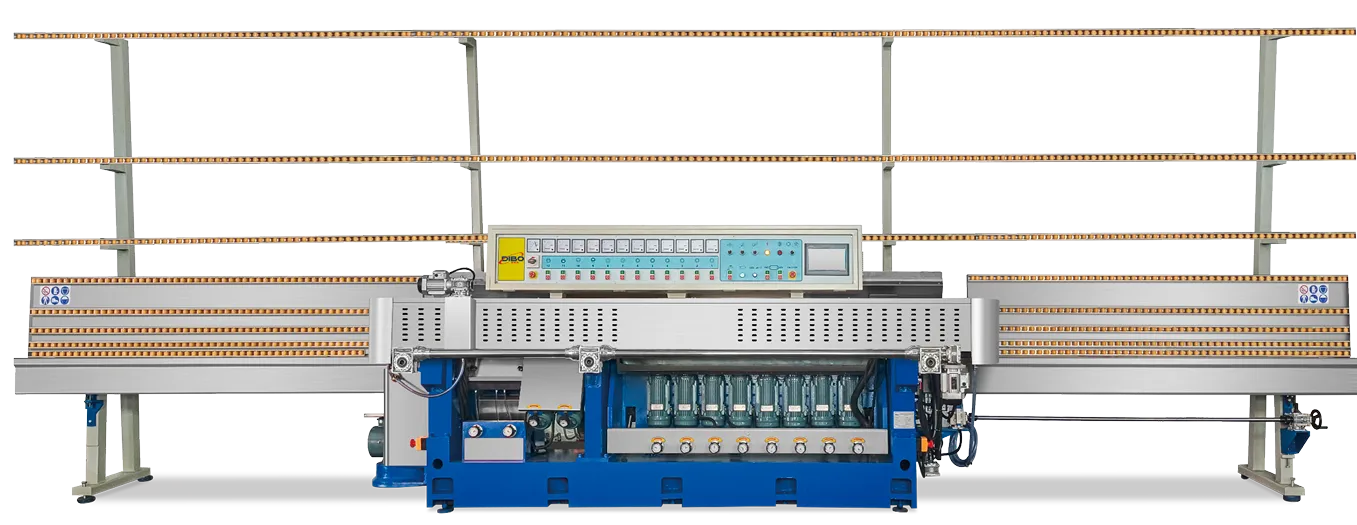

Glass Straight-Line Angle-Changing Edging Machine-Supreme Edition

The glass straight‑line angle‑changing edging machine is multi‑functional flat‑glass deep‑processing equipment. It can switch freely between flat straight edge and inclined bevel edge processing without changing machines.

يشارك：

اتصل بنا

تحقيق

صندوق البريد：Sales@dibomac.com

واتس اب：8615363670659

مقدمة مفصلة

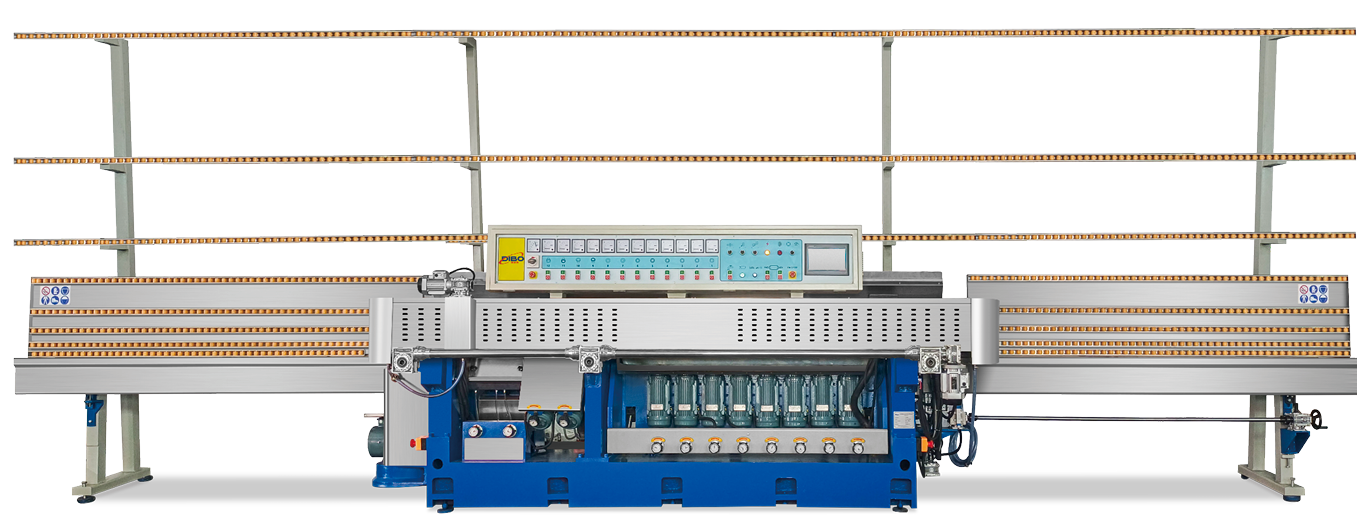

Glass Straight-Line Angle-Changing Edging Machine

Supreme Edition

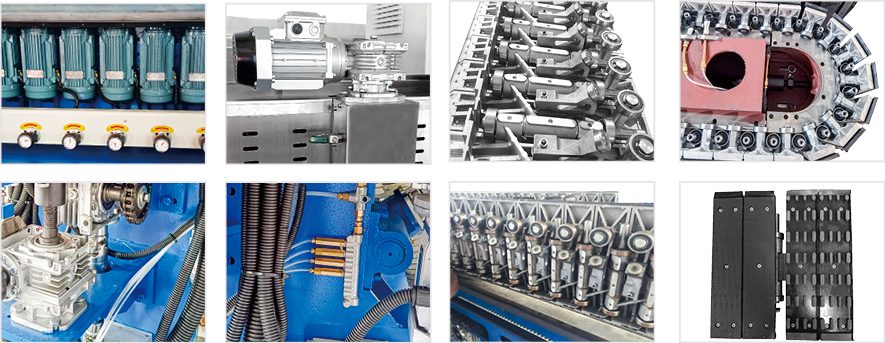

▌Product details


▌Production samples


▌Technical parameter

Model	Speed	Bevel Angle	Min. Glass Size	Glass Thickness	Total Power	Machine Dimension(LWH)	Weight
DJM9‑45	0.5‑8m/min	0‑45°	30*30mm	3‑50mm	24kW	720014502700mm	4500kg
DJM10‑45	0.5‑8m/min	0‑45°	30*30mm	3‑50mm	26kW	750014502700mm	5000kg
DJM11‑45	0.5‑8m/min	0‑45°	30*30mm	3‑50mm	28kW	770014502700mm	5500kg
DJM12‑45	0.5‑8m/min	0‑45°	30*30mm	3‑50mm	30kW	830014502700mm	5800kg
DJM14‑45	0.5‑8m/min	0‑45°	30*30mm	3‑50mm	36kW	940014502700mm	6000kg
DJM24‑45	0.5‑8m/min	0‑45°	30*30mm	3‑50mm	75kW	1100014502700mm	15000kg

Product Introduction

It completes coarse grinding, fine grinding and high‑gloss polishing in one feeding stroke. With flexible angle adjustment function, it satisfies diversified edge‑shape requirements in glass workshops. Rigid machine frame and stable transmission structure guarantee consistent polishing quality during continuous batch production. It is ideal flexible production equipment for glass factories with various order types.

Key Advantages

Multi‑edge processing flexibility
One machine supports multiple edge forms. Quickly switch between straight flat edge and inclined bevel edge, respond flexibly to varied order demands and reduce equipment investment.
Stable angle adjustment & precise finishing
Optimized swing‑angle mechanical structure ensures reliable angle conversion. Grinding and polishing quality stays uniform after angle adjustment, avoiding uneven edge defects.
Durable performance for long‑time production
Heavy‑duty body structure effectively suppresses vibration in continuous running. Keep stable processing performance for mixed‑batch production of different edge styles.
Convenient setting & operation
Human‑friendly control interface. Operators can finish angle switching and parameter setting conveniently. Short training time enables staff to handle mixed‑style production tasks.
Easy maintenance
Reasonable structural layout facilitates routine inspection, cleaning and wearing‑part replacement, lowering daily operating cost.

Industry Applications

Architectural glass: Doors, windows, partition, curtain‑wall glass for various straight and chamfered edge requirements.
Furniture glass: Table tops, cabinet glass, tea‑table glass, realize different edge styles for furniture design.
Sanitary & shower glass: Shower room, balustrade glass, produce safe smooth edges of different shapes.
Decorative & engineering glass: Hotel projects, showcase and display glass for mixed‑style edge finishing.
Comprehensive glass deep‑processing factory: Suitable for workshops with frequent changes of edge‑shape requirements, flexible for mixed‑order production.

FAQ

Q1: What processing types can this machine achieve?

A: It can produce both flat straight edges and inclined bevel edges on flat glass, realizing multi‑style edge processing on one single device.

Q2: Do I need to replace grinding wheels when changing processing angle?

A: No need for wheel replacement. The machine completes angle adjustment through mechanical setting, ready‑to‑work after simple parameter configuration.

Q3: Will processing quality change after angle switching?

A: The mechanical swing‑angle structure keeps stable running performance. Finished grinding and polishing effect remains consistent after angle adjustment.

Q4: Is it suitable for small‑batch mixed‑style orders?

A: Yes. Quick angle‑switching function fits workshops frequently switching between different edge styles.

Q5: What after‑sales support can you provide?

A: We offer operation training guidance, remote technical troubleshooting, maintenance suggestions and long‑term spare‑parts supply.
