Vertical Glass Drilling and Waterjet Cutting Machine

The vertical glass drilling and waterjet cutting machine is an integrated CNC glass processing centre with vertical plate‑holding structure. It combines precision mechanical drilling and abrasive water‑jet cold‑cutting function in one unit.

يشارك：

اتصل بنا

تحقيق

صندوق البريد：Sales@dibomac.com

واتس اب：8615363670659

مقدمة مفصلة

Vertical Glass Drilling And Waterjet Cutting Machine


▌Product details

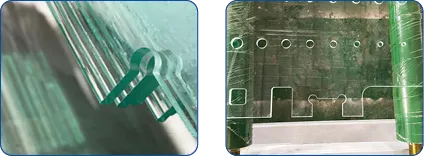

▌Production samples


▌Technical parameter

Total power	40kW(Max)
Average power	4kW for Drilling/37KW for Waterjet
Voltage/ Frequency	380V/50Hz
Spindle motor	1.0kW
Spindle speed	800‑4000RPM
Max. Glass size	2600x1500mm
Min. Glass size	800x150mm
Glass thickness	4‑14mm
Processing efficience	10S (Standard value) 260 pcs/shift and there are average 4holes/pcs
Feeding speed	2mm/s (Standard value)
Chamfering efficience	5S
Positioning speed	800mm/s
Switching time	2S (Standard value)
Drill bit quantities	8+8 (7+1/7+1)
Hole accuracy	Maximum hole spacing error ±0.5mm
Hole diameter	Max φ30mm

Product Introduction

It supports automatic hole drilling, countersinking, complex inner cut‑outs and special‑shape contour cutting. Cold water‑jet cutting brings no thermal stress to glass and avoids cracking or chipping during processing. With vertical loading design, glass placement and unloading are more convenient. Imported CAD/DXF drawings can be directly imported for fully‑automatic production. It is ideal multi‑task equipment for glass factories handling shower glass, architectural and custom decorative glass products.

Key Advantages

All‑in‑one multi‑function processing
Realise drilling, countersinking and water‑jet special‑shape cutting on one machine. Reduce separate equipment investment and workpiece repeated handling, improve overall workshop efficiency.
Vertical structure for better precision & operation
Glass stands vertically against the support panel, effectively reduce glass deformation caused by gravity. Loading and unloading is easier compared with horizontal machines, saving labour intensity for operators.
Cold water‑jet cutting quality
Abrasive water‑jet cold cutting process, no heat‑affected zone. Edges are clean with minimal chipping; no secondary grinding required for most finished parts. Suitable for ordinary glass, laminated glass and composite glass.
CNC intelligent control system
Support DXF/CAD file direct import. Automatic path generation for holes and cutting contours. Short operator training cycle, fit for both mass production and custom small‑batch orders.
Compact footprint & easy maintenance
Integrated layout saves factory floor space. Modular structure makes daily inspection, consumable replacement and routine maintenance simple.

Industry Applications

Shower room glass: Hole drilling, notch cutout for shower enclosure fittings.
Architectural & facade glass: Special‑shaped openings, custom cutouts for building decoration projects.
Furniture glass: Table top, cabinet glass with complex holes and inner cut‑outs.
Laminated & safety glass: Process laminated glass without delamination risk by cold‑cut waterjet technology.
Custom decorative glass factory: Versatile production for mixed‑order custom glass workpieces.

FAQ

Q1: What processing jobs can this integrated machine finish?

A: It completes glass drilling, countersinking, notching and complex contour water‑jet cutting in single clamping.

Q2: Will water‑jet cutting produce thermal damage to glass?

A: It adopts cold abrasive water‑jet cutting. No heat stress occurs; greatly lower risk of glass crack or delamination, especially good for laminated glass.

Q3: Can I import CAD drawings directly?

A: Yes. The CNC system supports DXF / CAD drawing import, automatically generates drilling and cutting paths.

Q4: Is vertical loading suitable for large glass sheets?

A: Vertical support structure holds glass stably. Operators handle large glass easier than horizontal bench type.

Q5: What after‑sales support can you provide?

A: We supply installation guidance, operation training, remote technical support and long‑term supply of wearing spare‑parts.
